Product details

CWDR(J) series electric pressureless indirect heating hot water boiler body is equipped with resistance heating system, which directly heats the heat medium water through high-quality stainless steel heating device. Similarly, the upper part of the built-in boiler is equipped with a tubular stainless steel water-water heat exchanger, which is used to heat the circulating water flowing through the heat exchanger. The external boiler is equipped with a tubular stainless steel water-water heat exchanger outside the furnace body, and the heat medium water in the furnace body is heated by a circulating pump and flows through the circulating water in the heat exchanger to achieve the function of outputting heat.

Features

1. Using electricity as the heating source, the energy efficiency is as high as 98% or more

2. High-quality electric heating tube is used, which has long service life and convenient loading and unloading.

3. The unit operates under normal pressure, which simplifies the complicated approval procedures for the boiler.

4. The heat exchanger is separated from the header, and the heating water and hot water are supplied separately to meet the different needs for heating water and clean hot water.

5. The electrical components of high-quality well-known brands are used, and all components have CCC or CE certification, so that the boiler runs stably and reliably .

6. Modular design, high-performance heat exchange components, small size of the unit, making the product easy to transport, arrange and install; in a small space, multiple units can be used in parallel.

7. Touch screen display, virtual keys, Chinese and graphic display system operating conditions, online operation guide, fault self-diagnosis, automatic operation and manual operation can be used for one use and one for backup; realize man-machine dialogue.

8. Built-in stainless steel or copper heat exchanger with special treatment, good heat exchange effect and fast heating. Multiple automatic protection devices, with safety unmatched by other boilers.

9. The boiler as a whole is under normal pressure, which is safe and reliable ; the heat medium water in the boiler does not enter or exit during operation, and transfers heat with the heat exchanger in the boiler. The heating medium water is completely deoxidized and softened by heating, without corrosion and scale, which prolongs the service life of the boiler.

10. The lower part of the body is the same as the ordinary hot water boiler, which is composed of a combustion chamber and a heat transfer tube; the upper part is equipped with a heat exchanger, and the upper part of the furnace body is equipped with an expansion tank and the water level is automatically controlled.

11. The unit has compact structure, convenient transportation and installation, saves land occupation, eliminates the design and construction of heat exchange station, and saves engineering costs.

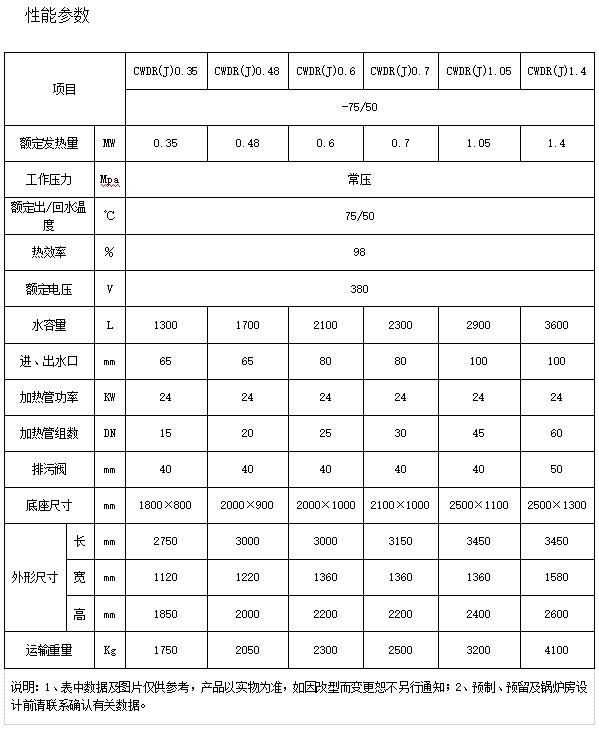

Product parameters
